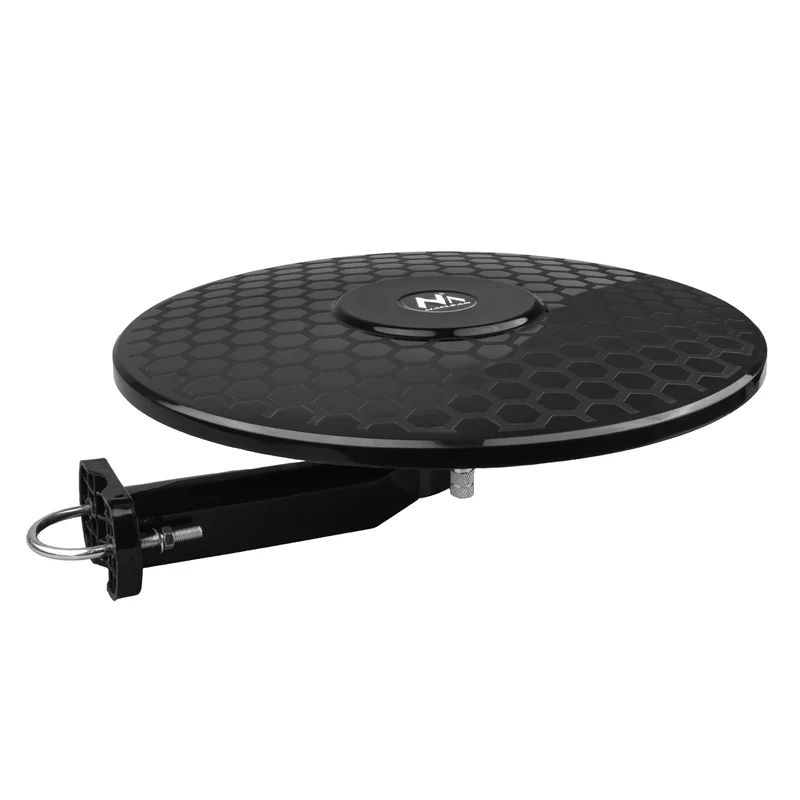

Maclean DVB-T/T2 HEVC omni-directional antenna, active, standard, USB 5V, MCTV-102

Antenna Maclean MCTV-102 is a universal antenna for receiving analog and digital TV programs DVB-T2 HEVC.
The advantage of the antenna is its small size and weight which allows it to be mounted in many places (roof, balcony, window), as well as on mobile objects (yacht, car).
Hermetic housing allows it to work in any climatic conditions.

A very important advantage of the MCTV-102 antenna is its omnidirectional (horizontal) directional characteristics, which in practice means that it does not need to be specially directed towards the transmitter. In addition, the antenna is equipped with an LTE filter, which eliminates interference from mobile networks so that it receives an interference-free signal.
The antenna is fed through a coaxial cable that feeds the amplified signal to the receiver. Using low-loss passive signal splitters, several receivers can be connected simultaneously. For connections, use a coaxial cable with a wave resistance of 75 Ohm and an outer diameter of 6mm.

- Frequency range: 174-230 Mhz, 470-698 MHz
- Orientation: 360°
- Polarization: horizontal
- Built-in filter: LTE
- Energy gain: 30-33 dB, max 44 dB
- Output: 75 ohm
- Power supply: USB 5V 30mA D
- Diameter: 26.5 cm
- Receive capability: MUX1, MUX2, MUX3, MUX8

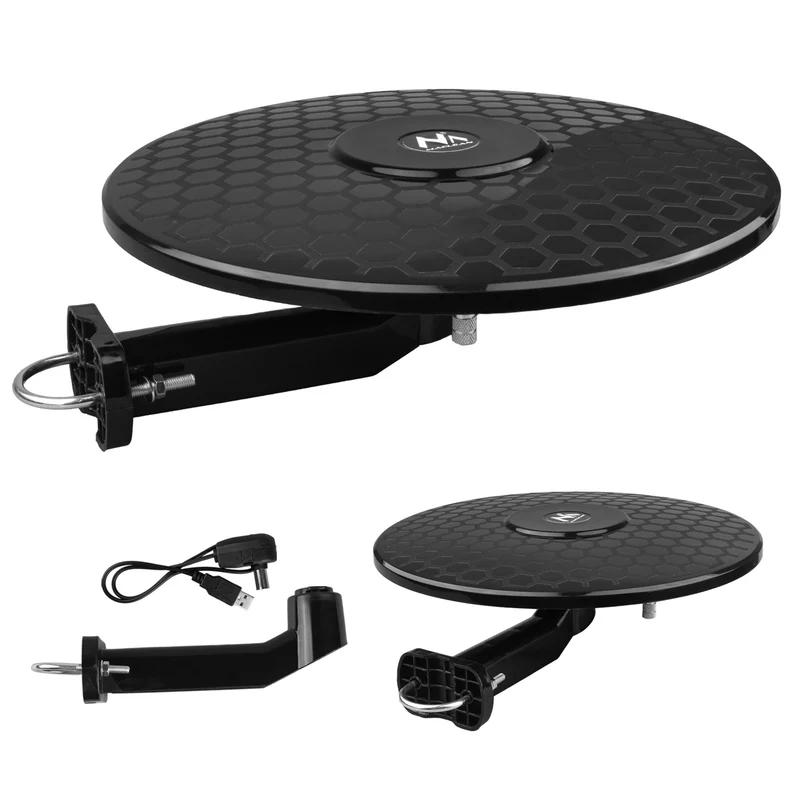

- Omni-directional DVB-T/T2 HEVC antenna Maclean MCTV-102

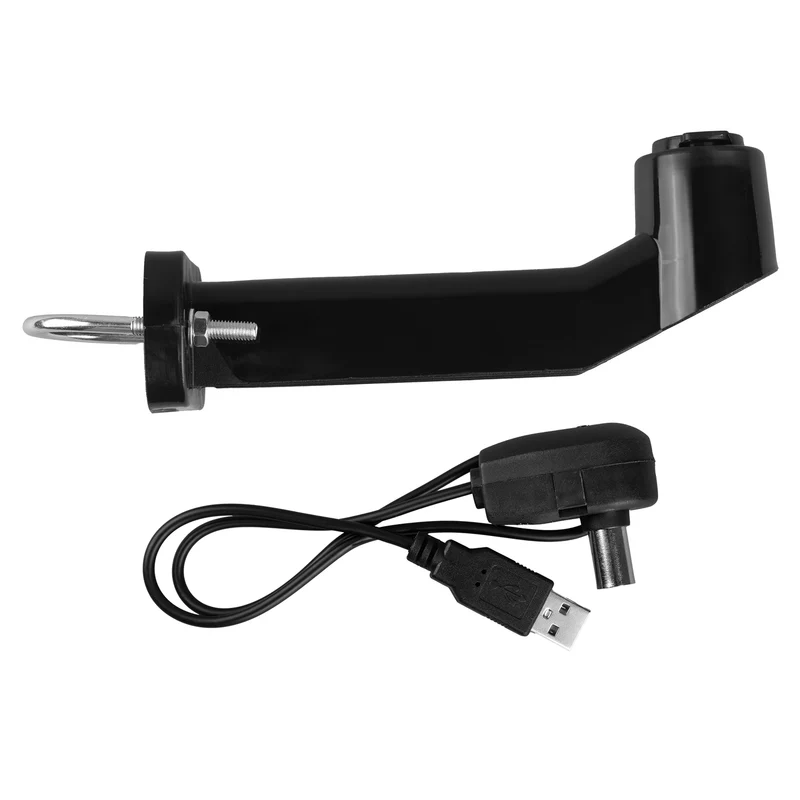

- Handle
- USB plug with separator
- Cable plug (F connector)
- Installation manual
- Manufacturer's packaging.

- Universal antenna for reception of analog and digital TV programs DVB-T/T2 HEVC
- Small size and weight
- Hermetic housing allows to work in all weather conditions
- Omnidirectional (horizontal) characteristics
- Built-in amplifier
- Built-in LTE filter provides better and trouble-free reception
- Can be mounted in many places (roof, balcony, window), also on mobile objects (yacht, car)
- Manufactured in Poland
- Perfectly receives terrestrial, digital signal (DVB-T/DVB-T2)
