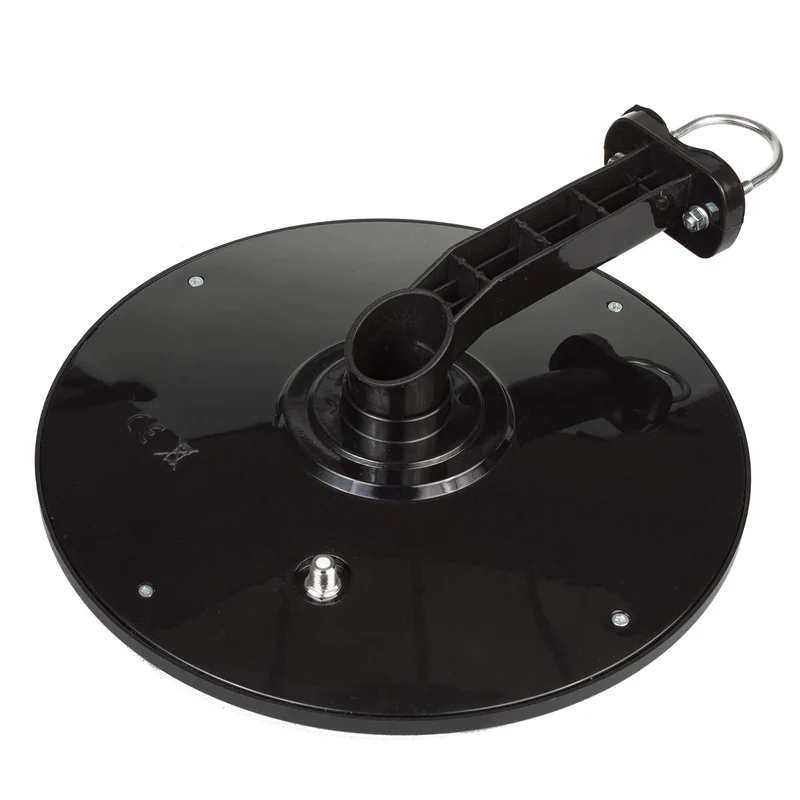

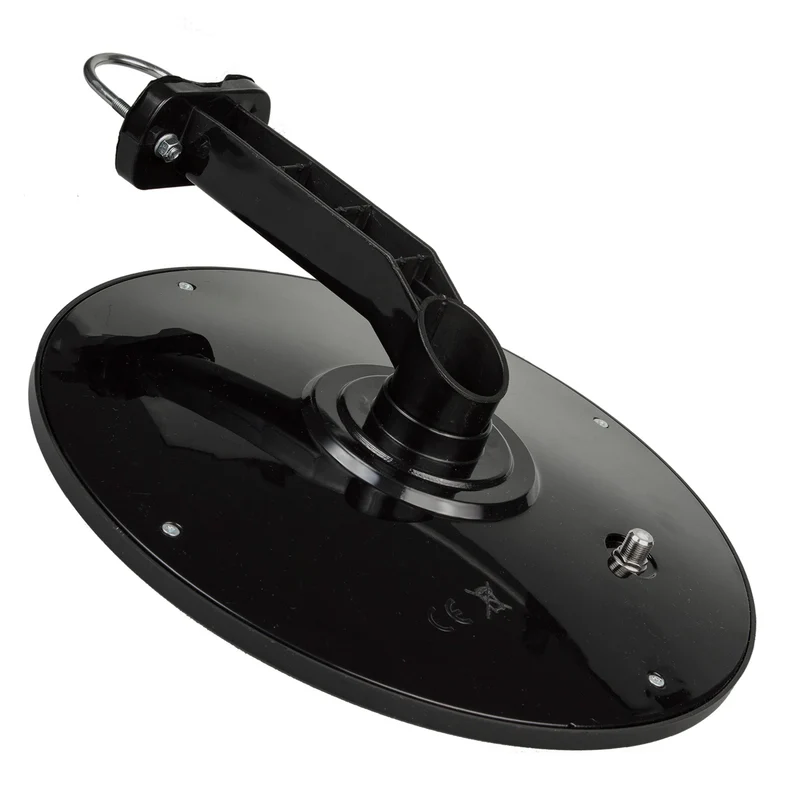

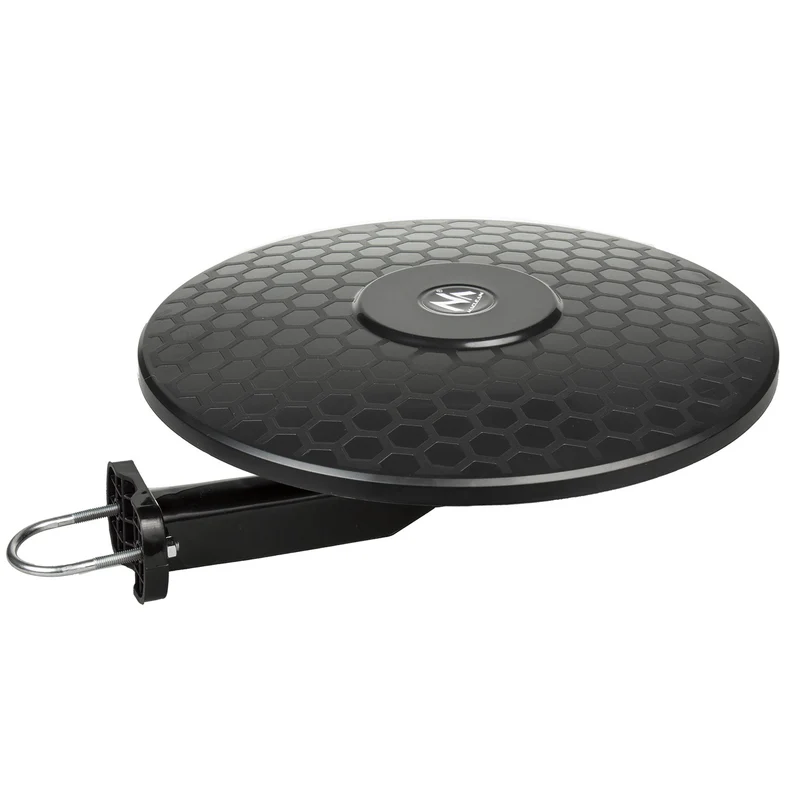

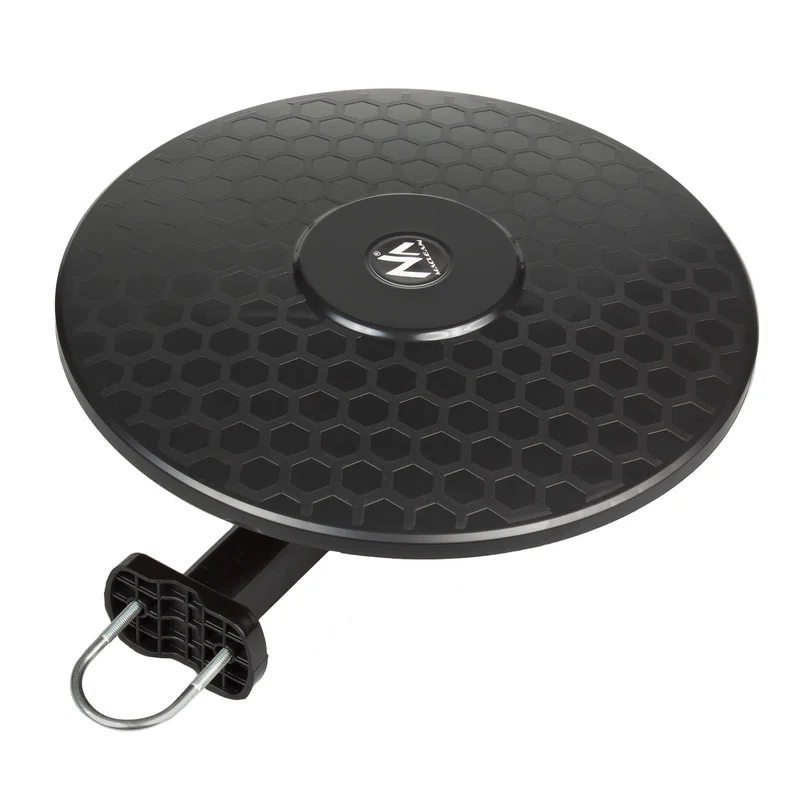

Maclean MCTV-946 Standard Active Multi-directional Antenna DVB-T2 HEVC

The Maclean COMPACT TV antenna is a universal antenna for receiving analogue and digital TV programs from DVB-T/T2 H.265 HEVC. The advantage of the antenna is its small size and weight which allows mounting in many places (roof, balcony, window), as well as on mobile objects (yacht, car).
The hermetic housing allows you to work in all climatic conditions.

A very important advantage of the COMPACT TV antenna is its omnidirectional (horizontal) directional characteristic, which in practice means that you do not have to specifically direct it towards the transmitter.
The antenna is powered by a coaxial cable supplying a reinforced signal to the receiver. When using low-loss passive signal splitters, several receivers can be connected at the same time. For connection use a coaxial cable with a wave resistance of 75 Ohm and an external diameter of 6mm.

- Frequency range: 174-230 Mhz, 470-790 MHz
- Orientation: 360 °
- Polarization: horizontal
- Energy gains: 30-33 dB, max 44 dB
- Output: 75 Ω
- Power supply: 12V 10-30mA DC

- Maclean MCTV-946, a multi-directional active DVB-T/T2 H.265 HEVC active satellite

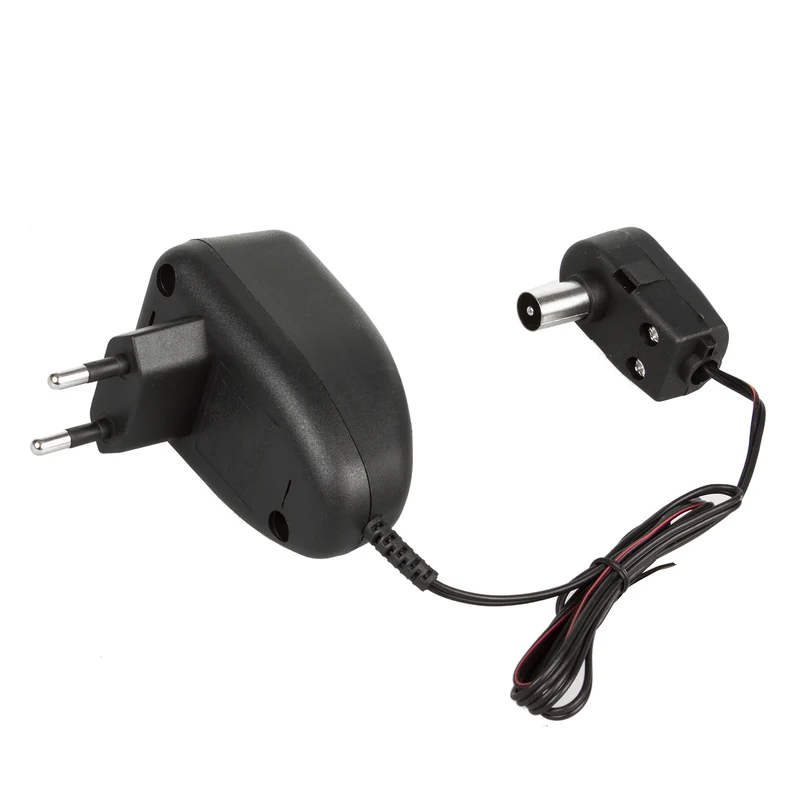

- Power supply with separator
- Cable plug (F connector)
- Installation instructions
- Manufacturer's packaging
- The proof of purchase

- A universal antenna for receiving analogue and digital TV programs from DVB-T/T2 H.265 HEVC
- Small dimensions and weight
- Hermetic casing allows you to work in all climatic conditions
- Omnidirectional (horizontal) directional characteristic
- Built-in amplifier
- Possibility to mount in many places (roof, balcony, window), also on mobile objects (yacht, car)
